S-LED 3 B-LUX

Name: S-LED 3 B-LUX
SKU: N1001-BS3-CONF
Price: 89.9 EUR
Availability: InStock

SKU N1001-BS3-CONF

USTREZA : Universal - Indicators

Tako nizko, kot 89,90 €

Na zalogi

Na voljo samo še %1

SKU

N1001-BS3-CONF

The BARRACUDA LED INDICATORS are UNIVERSAL, E-MARKED and compatible with all market motorcycles.

Each bike is equipped with a specific system that needs a relative adaptation:

Motorcycles with a 6-watt system need to adjust the flashing and operation of 10-watt RESISTORS (1res. X 2 Indicators / per side) or alternatively a compatible RELAY.
Motorcycles with a 10-watt system need to adjust the flashing and operation of 10-watt RESISTORS (x1res. X 1 Indicator) or alternatively a compatible RELAY.
Motorcycles with a 21 watt system require 21 watt HEATING ELEMENTS (1res. X 2 Indicators / per side) or alternatively a compatible RELAY to adjust the flashing and operation.
Motorcycles with original LED system require a technical analysis to evaluate what is necessary for operation (resistance or RELAY).

These considerations are general and concern 99% of the bikes on the market.
There are also particular models of motorcycles that for technical characteristics require specific electronic adapters to be evaluated individually and for regular operation we recommend professional technical support.

To complete the AD HOC INSTALLATION we advise you to consult the TECHNICAL SHEET relating to your motorcycle for the compatibility of related products such as:

INDICATOR BRACKET FRONT (necessary for mounting the indicators on the motorcycle structure)
RESISTORS CLICK HERE
INDICATOR CABLES (necessary for connecting the indicators to the original system without the need to make changes to the original cables or connectors)

For any further information or technical requirements, we please you to ask to our TECHNICAL OFFICE sendind a mail to: [email protected]

BREZPLAČNA POŠTNINA za naročila nad 150 €
BREZPLAČNO VRAČILO* (izbirno)
GRATIS PREVLEKA ZA MOTOR pri naročilu nad 200 €
PAYPAL

Od ponedeljka do petka potrdite naročilo do 16. ure, odpelje še isti dan

Preskoči na konec galerije slik

Preskoči na začetek galerije slik

Podrobnosti

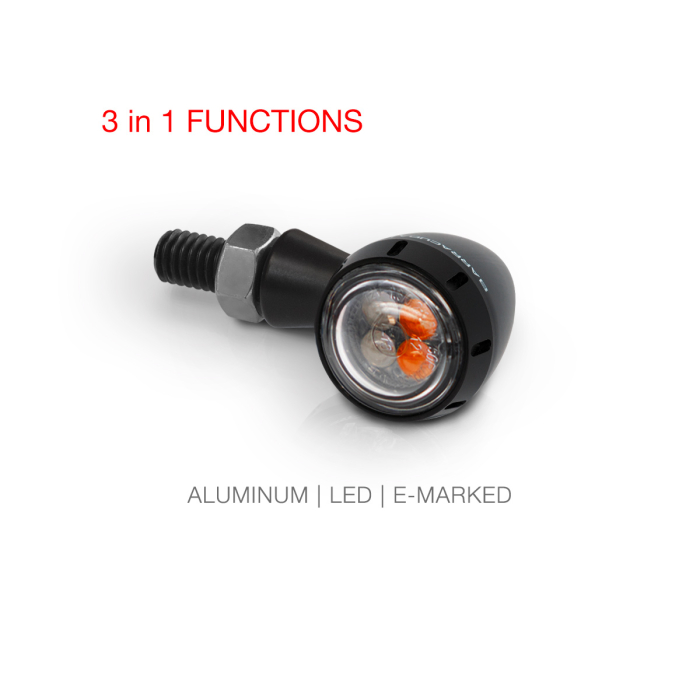

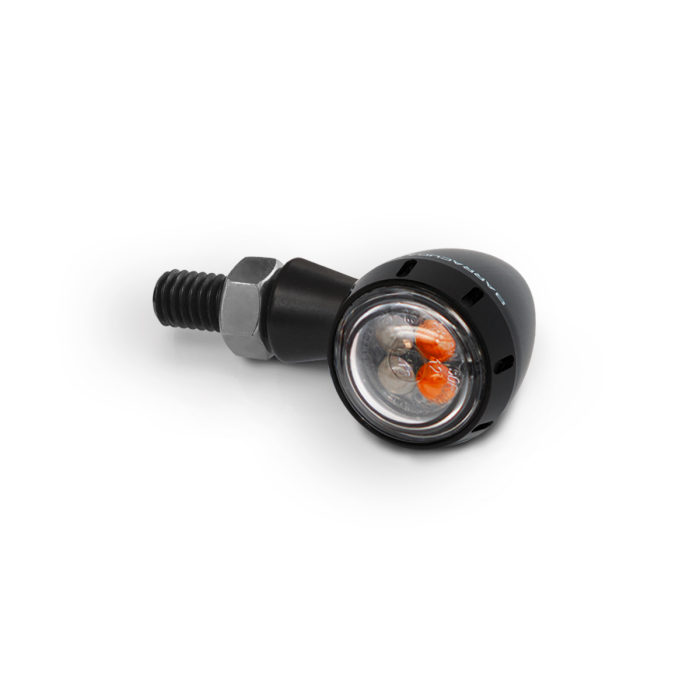

S-LED 3 B-LUX represents the top range E-marked led indicators offered from BARRACUDA. They are part of the ALUMINUM LUXURY PROJECT called B-LUX.

They have also the STOP and POSITION function.

They are characterized by aerodynamic lines and retrò-classic style, made in small size.

S-LED 3 B-LUX are offered in six different anodization colors: BLACK, RED, SILVER, GOLD, GREEN and BLUE.

Sold in pairs, designed by BARRACUDA.
